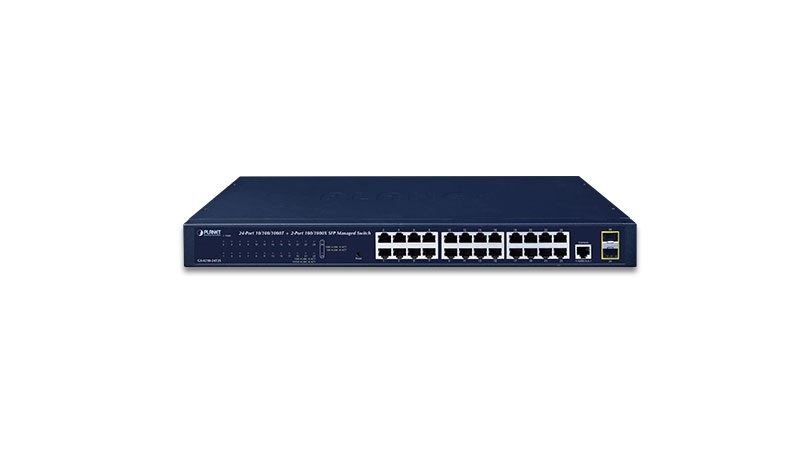

PLANET GS-4210-24T2S là bộ chuyển mạch Ethernet được quản lý 24 cổng Gigabit 10/100/1000Mbps giao diện RJ45 và 2 giao diện SFP 100/1000BaseX được thiết kế đặc biệt để xây dựng một đường trục Gigabit đầy đủ để truyền và chuyển tiếp dữ liệu đến mạng từ xa thông qua cáp quang một cách đáng tin cậy. Switch 24 cổng Gigabit PLANET GS-4210-24T2S với hệ thống nguồn tích hợp, và có khả năng xử lý số lượng cực lớn dữ liệu video, thoại và dữ liệu quan trọng trong cấu trúc liên kết an toàn, PLANET GS-4210-24T2S cung cấp giao diện quản lý IPv6 / IPv4 thân thiện với người dùng nhưng nâng cao và các chức năng chuyển mạch L2 / L4. Đây là khoản đầu tư tốt nhất cho các doanh nghiệp và SOHO mở rộng hoặc nâng cấp cơ sở hạ tầng mạng.
Switch Ethernet quản lý GS-4210-24T2S hỗ trợ công nghệ vòng dự phòng và có khả năng tự phục hồi nhanh chóng, mạnh mẽ để ngăn chặn sự gián đoạn và sự xâm nhập từ bên ngoài. Nó kết hợp công nghệ ITU-T G.8032 ERPS (Ethernet Ring Protection Switching) tiên tiến và Giao thức Spanning Tree (MSTP 802.1s) vào mạng của khách hàng để nâng cao độ tin cậy và thời gian hoạt động của hệ thống trong các môi trường khác nhau.
Tính năng chính Managed Switch 24-Port Gigabit + 2-Port SFP PLANET GS-4210-24T2S:
- 24 Port 10/100/1000Mbps, giao diện RJ45.
- 2 port Uplink SFP 100/1000BaseX.
- Hỗ trợ IPV4/IPV6.
- Hỗ trợ quản lý, cấu hình thông qua web, Telnet và SNMP
- Hỗ trợ VLAN, Link Aggregation, IGMP, MLD Snooping, QoS.
- L2 Managed Switch
- Có thể lắp đặt lên giá Rack hoặc để bàn.
- Nguồn điện: 100~240VAC.
Thông số kỹ thuật Switch quản lý 24 cổng Gigabit + 2 cổng SFP PLANET GS-4210-24T2S
| Hardware Specifications | |
|---|---|
| Hardware Version | 2 |
| Copper Ports | 24 x 10/100/1000BASE-T RJ45 auto-MDI/MDI-X ports |
| SFP/mini-GBIC Slots | 2 100/1000BASE-X SFP interfaces, supporting 100/1000Mbps dual mode |
| Console | 1 x RS232-to-RJ45 serial port (115200, 8, N, 1) |
| Reset Button | < 5 sec: System reboot > 5 sec: Factory default |
| Dimensions (W x D x H) | 445 x 207 x 45 mm (1U height) |
| Weight | 2.1kg |
| ESD Protection | Yes |
| Enclosure | Metal |
| Power Requirements | 100~240V AC, 50/60Hz, 0.8A (max.) |
| Power Consumption/Dissipation | Max. 14 watts/47 BTU |
| LED | System: Power (Green) 10/100/1000T RJ45 Interfaces (Port 1 to Port 24): 1000 LNK/ACT (Green), 10/100 LNK/ACT (Orange) 100/1000Mbps SFP Interfaces (Port 25 to Port 26): 1000 LNK/ACT (Green), 100 LNK/ACT (Orange) |
| Switching | |
| Switch Architecture | Store-and-Forward |
| Switch Fabric | 52Gbps/non-blocking |
| Switch Throughput@64 bytes | 38.6Mpps @64 bytes |
| MAC Address Table | 8K entries |
| Shared Data Buffer | 4.1 megabits |
| Flow Control | IEEE 802.3x pause frame for full duplex Back pressure for half duplex |
| Jumbo Frame | 9216 bytes |
| Layer 2 Functions | |
| Port Mirroring | TX/RX/both Many-to-1 monitor |
| VLAN | 802.1Q tagged-based VLAN Up to 256 VLAN groups, out of 4094 VLAN IDs 802.1ad Q-in-Q tunneling (VLAN stacking) Voice VLAN Protocol VLAN Private VLAN (Protected port) GVRP Management VLAN |
| Link Aggregation | IEEE 802.3ad LACP and static trunk Supports 8 groups of 8-port trunk |
| Spanning Tree Protocol | IEEE 802.1D Spanning Tree Protocol (STP) IEEE 802.1w Rapid Spanning Tree Protocol (RSTP) IEEE 802.1s Multiple Spanning Tree Protocol (MSTP) STP BPDU Guard, BPDU Filtering and BPDU Forwarding |
| IGMP Snooping | IPv4 IGMP (v2/v3) snooping IGMP querier Up to 256 multicast groups |
| MLD Snooping | IPv6 MLD (v1/v2) snooping, up to 256 multicast groups |
| Access Control List | IPv4/IPv6 IP-based ACL/MAC-based ACL IPv4/IPv6 IP-based ACE/MAC-based ACE |
| QoS | 8 mapping IDs to 8 level priority queues Port number 802.1p priority DSCP/IP precedence of IPv4/IPv6 packets Traffic classification based, strict priority and WRR Ingress/Egress Rate Limit per port bandwidth control |
| Ring | Supports ERPS, and complies with ITU-T G.8032 |
| Security Functions | |
| Access Control List | IPv4/IPv6 IP-based ACL/MAC-based ACL |
| Port Security | IEEE 802.1X – Port-based authentication Built-in RADIUS client to co-operate with RADIUS server RADIUS/TACACS+ user access authentication |
| MAC Security | IP-MAC port binding MAC filter Static MAC address |
| Enhanced Security | DHCP Snooping and DHCP Option82 STP BPDU guard, BPDU filtering and BPDU forwarding DoS attack prevention ARP inspection IP source guard |
| Management Functions | |
| Basic Management Interfaces | RS232 to RJ45 Console Web browser Telnet SNMP v1, v2c |
| Secure Management Interfaces | SSHv2, TLSv1.2, SNMPv3 |
| System Management | Firmware upgrade by HTTP/TFTP protocol through Ethernet network LLDP protocol SNTP PLANET Smart Discovery Utility PLANET NMS System/CloudViewer |
| Event Management | Remote/Local Syslog System log |
| SNMP MIBs | RFC 1213 MIB-II RFC 1215 Generic Traps RFC 1493 Bridge MIB RFC 2674 Bridge MIB Extensions RFC 2737 Entity MIB (Version 2) RFC 2819 RMON (1, 2, 3, 9) RFC 2863 Interface Group MIB RFC 3635 Ethernet-like MIB |
| Standards Conformance | |
| Regulatory Compliance | FCC Part 15 Class A, CE |
| Standards Compliance | IEEE 802.3 10BASE-T IEEE 802.3u 100BASE-TX/100BASE-FX IEEE 802.3z Gigabit SX/LX IEEE 802.3ab Gigabit 1000BASE-T IEEE 802.3x flow control and back pressure IEEE 802.3ad port trunk with LACP IEEE 802.1D Spanning Tree Protocol IEEE 802.1w Rapid Spanning Tree protocol IEEE 802.1s Multiple Spanning Tree protocol IEEE 802.1p Class of Service IEEE 802.1Q VLAN Tagging IEEE 802.1x Port Authentication Network Control IEEE 802.1ab LLDP RFC 768 UDP RFC 793 TFTP RFC 791 IP RFC 792 ICMP RFC 2068 HTTP RFC 1112 IGMP version 1 RFC 2236 IGMP version 2 RFC 3376 IGMP version 3 RFC 2710 MLD version 1 RFC 3810 MLD version 2 ITU G.8032 ERPS Ring |
| Environment | |
| Operating | Temperature: 0 ~ 50 degrees C Relative Humidity: 5 ~ 95% (non-condensing) |
| Storage | Temperature: -10 ~ 70 degrees C Relative Humidity: 5 ~ 95% (non-condensing) |
