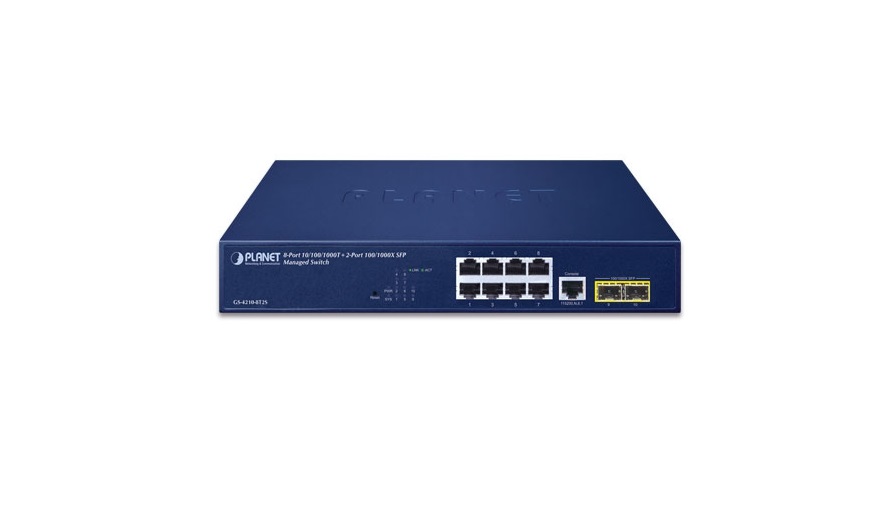

PLANET GS-4210-8T2S là bộ chuyển mạch Ethernet được quản lý 8 cổng Gigabit 10/100/1000Mbps giao diện RJ45 và 2 giao diện SFP 100/1000BaseX được thiết kế đặc biệt để xây dựng một đường trục Gigabit đầy đủ để truyền và chuyển tiếp dữ liệu đến mạng từ xa thông qua cáp quang một cách đáng tin cậy. Switch 8 cổng Gigabit PLANET GS-4210-8T2S với hệ thống nguồn tích hợp, và có khả năng xử lý số lượng cực lớn dữ liệu video, thoại và dữ liệu quan trọng trong cấu trúc liên kết an toàn, GS-4210-8T2S cung cấp giao diện quản lý IPv6 / IPv4 thân thiện với người dùng nhưng nâng cao và các chức năng chuyển mạch L2 / L4. Đây là khoản đầu tư tốt nhất cho các doanh nghiệp và SOHO mở rộng hoặc nâng cấp cơ sở hạ tầng mạng.
Switch Ethernet quản lý GS-4210-8T2S hỗ trợ công nghệ vòng dự phòng và có khả năng tự phục hồi nhanh chóng, mạnh mẽ để ngăn chặn sự gián đoạn và sự xâm nhập từ bên ngoài. Nó kết hợp công nghệ ITU-T G.8032 ERPS (Ethernet Ring Protection Switching) tiên tiến và Giao thức Spanning Tree (MSTP 802.1s) vào mạng của khách hàng để nâng cao độ tin cậy và thời gian hoạt động của hệ thống trong các môi trường khác nhau.
Tính năng chính Managed Switch 8-Port Gigabit + 2-Port SFP PLANET GS-4210-8T2S:
- 8 Port 10/100/1000Mbps, giao diện RJ45.
- 2 port Uplink SFP 100/1000BaseX.
- Hỗ trợ IPV4/IPV6.
- Hỗ trợ quản lý, cấu hình thông qua web, Telnet và SNMP
- Hỗ trợ VLAN, Link Aggregation, IGMP, MLD Snooping, QoS.
- L2 Managed Switch
- Có thể lắp đặt lên giá Rack hoặc để bàn.
- Nguồn điện: 100~240VAC.
Thông số kỹ thuật Switch quản lý 8 cổng Gigabit + 2 cổng SFP PLANET GS-4210-8T2S
| Hardware Specifications | |
|---|---|
| Copper Ports | 8 x 10/100/1000BASE-T RJ45 Auto-MDI/MDI-X ports |
| SFP Ports | 2 x 100/1000BASE-X SFP interfaces Supports 100/1000Mbps dual mode and DDM |
| Console | 1 x RS-232-to-RJ45 serial port (115200, 8, N, 1) |
| Reset Button | < 5 sec: System reboot > 5 sec: Factory default |
| Dimensions (W x D x H) | 280 x 180 x 44 mm, 1U height |
| Weight | 1315g |
| Enclosure | Metal |
| Power Requirements | AC 100~240V, 50/60Hz, 2.5A, auto-sensing |
| Power Consumption/ Dissipation | 6.8 watts/ 23.2 BTU |
| ESD Protection | Contact Discharge 6KV DC Air Discharge 8KV DC |
| Fan | Fanless design |
| LED | System: PWR x1 (Green) SYS x1 (Green) Per PoE Port (Port 1 to Port 8): LNK/ACT x1 (Green) Per Gigabit SFP Port (Port 9 to Port 10): 100/1000 LNK/ACT x1 (Green) |
| Switching Specifications | |
| Switch Architecture | Store-and-Forward |
| Switch Fabric | 20Gbps/non-blocking |
| Switch Throughput@64Bytes | 14.88Mpps |
| Address Table | 8K entries |
| Shared Data Buffer | 4.1 megabits |
| Flow Control | IEEE 802.3x pause frame for full duplex Back pressure for half duplex |
| Jumbo Frame | 10K bytes |
| Layer 2 Functions | |
| Port Mirroring | TX/RX/both Many-to-1 monitor Up to 4 sessions |
| VLAN | IEEE 802.1Q tagged VLAN IEEE 802.1ad Q-in-Q tunneling Voice VLAN Protocol VLAN Private VLAN (Protected port) GVRP Up to 256 VLAN groups, out of 4094 VLAN IDs |
| Link Aggregation | IEEE 802.3ad LACP/Static Trunk Supports1 trunk group with 2 ports per trunk |
| Spanning Tree Protocol | IEEE 802.1D Spanning Tree Protocol (STP) IEEE 802.1w Rapid Spanning Tree Protocol (RSTP) IEEE 802.1s Multiple Spanning Tree Protocol (MSTP) STP BPDU Guard, BPDU Filtering and BPDU Forwarding |
| IGMP Snooping | IPv4 IGMP (v2/v3) Snooping IPv4 IGMP Querier Up to 256 multicast groups |
| MLD Snooping | IPv6 MLD (v1/v2) Snooping Up to 256 multicast groups |
| QoS | 8 mapping ID to 8 level priority queues – Port number – 802.1p priority – 802.1Q VLAN tag – DSCP field in IP packet Traffic classification based, strict priority and WRR |
| Ring | Supports ERPS, and complies with ITU-T G.8032 |
| Security Functions | |
| Access Control List | IPv4/IPv6 IP-based ACL MAC-based ACL |
| Security | P-MAC port binding MAC filter Static MAC address DHCP Snooping and DHCP Option82 DoS attack prevention ARP inspection IP source guard |
| AAA | Built-in RADIUS client to co-operate with RADIUS server |
| Network Access Control | IEEE 802.1X – Port-based authentication RADIUS/TACACS+ user access authentication |
| Management Functions | |
| Basic Management Interfaces | RS232 console Web browser Telnet SNMP v1, v2c |
| Secure Management Interfaces | SSHv2, TLS v1.2, SNMP v3 |
| System Management | Firmware upgrade by HTTP/TFTP protocol through Ethernet network LLDP protocol SNTP PLANET Smart Discovery Utility PLANET NMS System |
| Event Management | Remote/Local Syslog System log |
| SNMP MIBs | RFC 1213 MIB-II RFC 1215 Generic Traps RFC 1493 Bridge MIB RFC 2674 Bridge MIB Extensions RFC 2737 Entity MIB (Version 2) RFC 2819 RMON (1, 2, 3, 9) RFC 2863 Interface Group MIB RFC 3635 Ethernet-like MIB |
| Standards Conformance | |
| Regulatory Compliance | FCC Part 15 Class A, CE |
| Standards Compliance | IEEE 802.3 10BASE-T IEEE 802.3u 100BASE-TX/100BASE-FX IEEE 802.3z Gigabit SX/LX IEEE 802.3ab Gigabit 1000T IEEE 802.3x flow control and back pressure IEEE 802.3ad port trunk with LACP IEEE 802.1D Spanning Tree protocol IEEE 802.1w Rapid Spanning Tree protocol IEEE 802.1s Multiple Spanning Tree protocol IEEE 802.1p Class of Service IEEE 802.1Q VLAN tagging IEEE 802.1x Port Authentication Network Control IEEE 802.1ab LLDP IEEE 802.3af Power over Ethernet IEEE 802.3at Power over Ethernet Plus RFC 768 UDP RFC 793 TFTP RFC 791 IP RFC 792 ICMP RFC 2068 HTTP RFC 1112 IGMP version 1 RFC 2236 IGMP version 2 RFC 3376 IGMP version 3 RFC 2710 MLD version 1 RFC 3810 MLD version 2 ITU G.8032 ERPS Ring |
| Environment | |
| Operating | Temperature: 0 ~ 50 degrees C Relative Humidity: 5 ~ 95% (non-condensing) |
| Storage | Temperature: -20 ~ 70 degrees C Relative Humidity: 5 ~ 95% (non-condensing) |
